EMRAX 268

Mechanical
Type: Axial flux motor / generator
Casing diameter: 268 mm
Axial length: 91 mm
Dry mass: 20,0 kg (AC) / 20,3 kg (CC) / 20,5 kg (LC)
Stator cooling: air (IP21) / combined (IP21) / liquid (IP65)
Mounting: Front: 6x M6 threaded holes
Back: 8x M6 threaded holes
Stacking: Two motors can be stacked together to achieve doubled power / torque. For more info click here.
Electrical
Maximal battery voltage: 800 (HV) / 650 (MV) / 250 Vdc (LV)
Peak power
(at 4500 RPM):
200 kW
Continuous power*: up to 107 kW
Peak torque: 500 Nm
Continuous torque*: up to 250 Nm
Efficiency: 92-98%

*Subject to drive cycle, thermal conditions and controller capability.

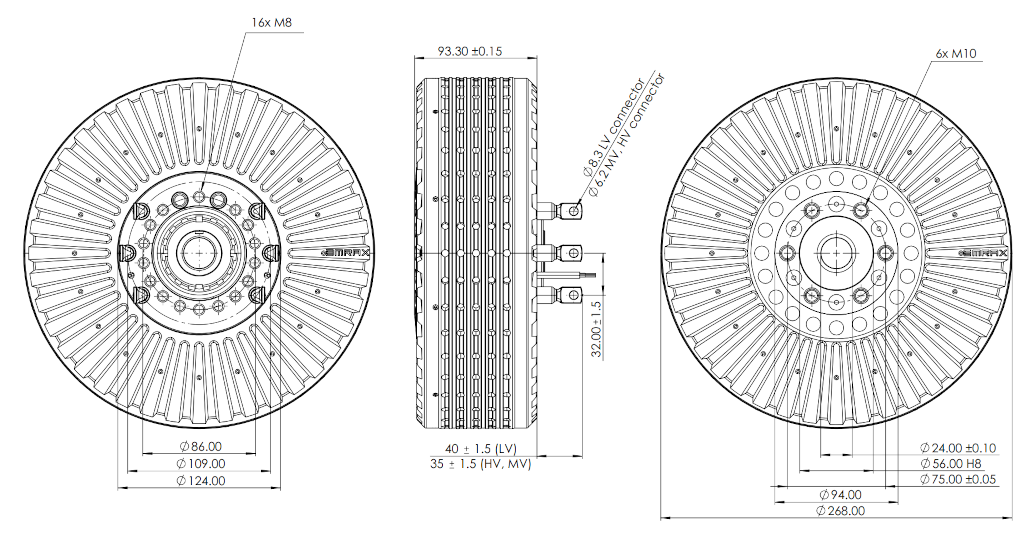

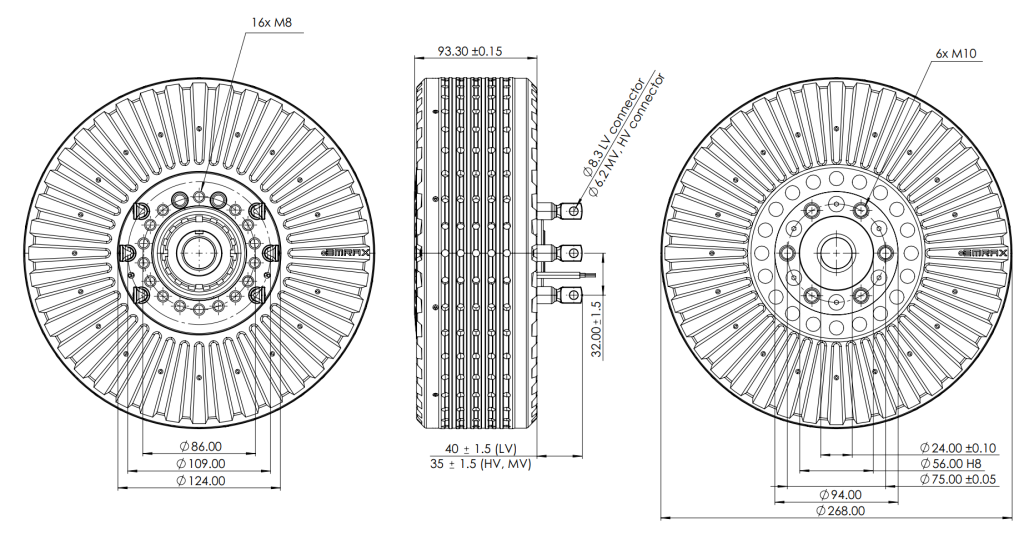

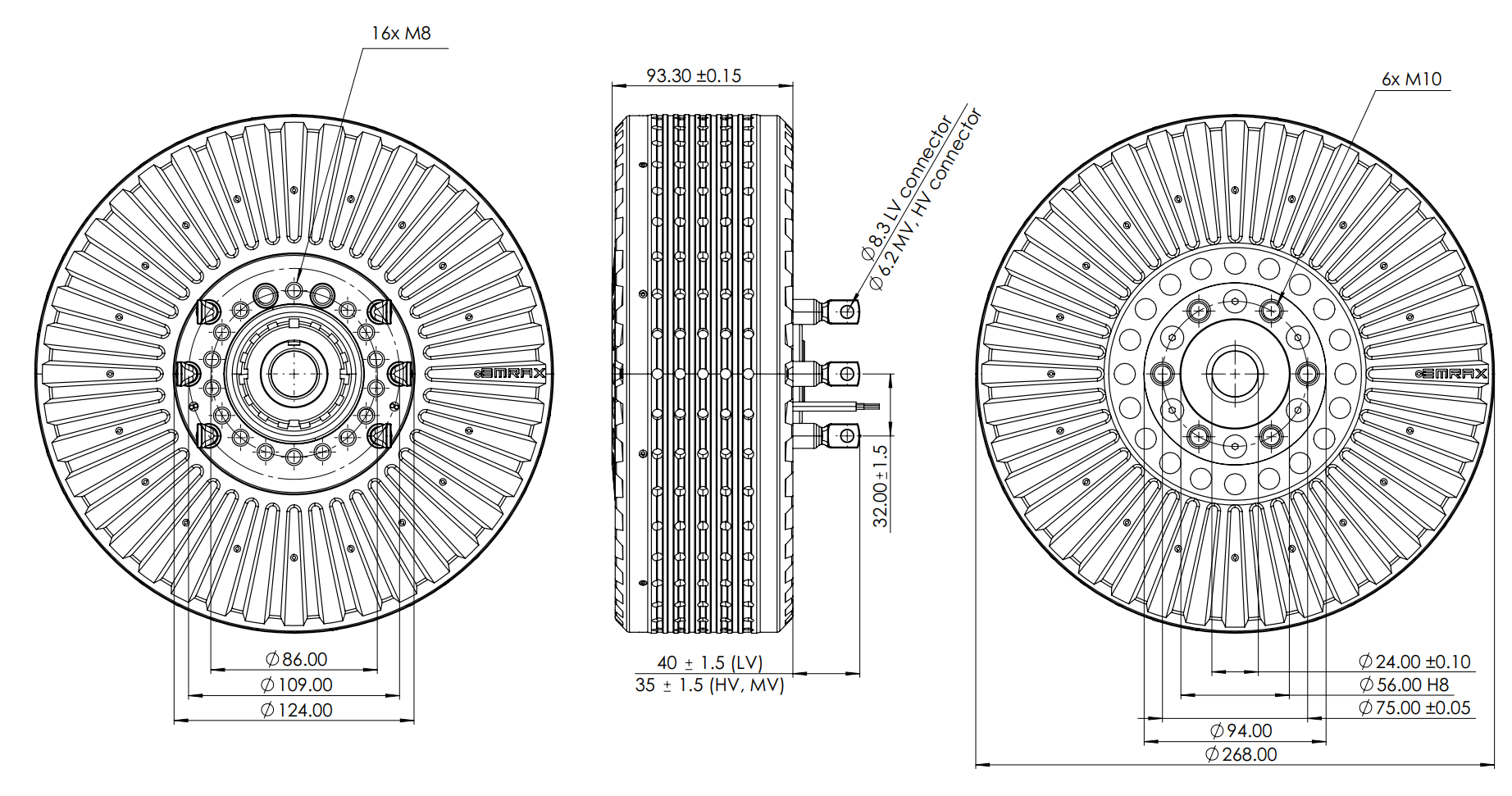

EMRAX 268 Dimensions

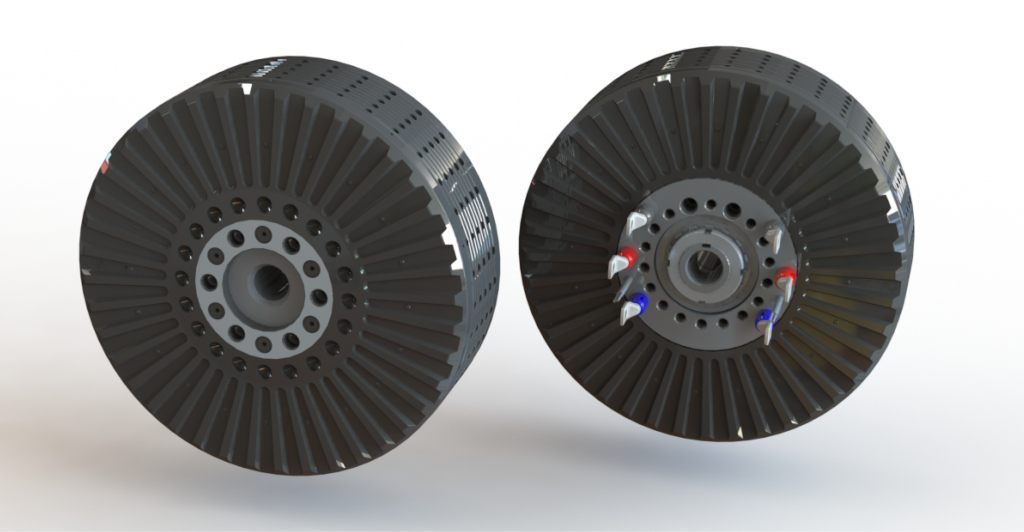

EMRAX 268 3D Model

Manual for EMRAX motors / generators

An overview of EMRAX motors, technical specification and their use
