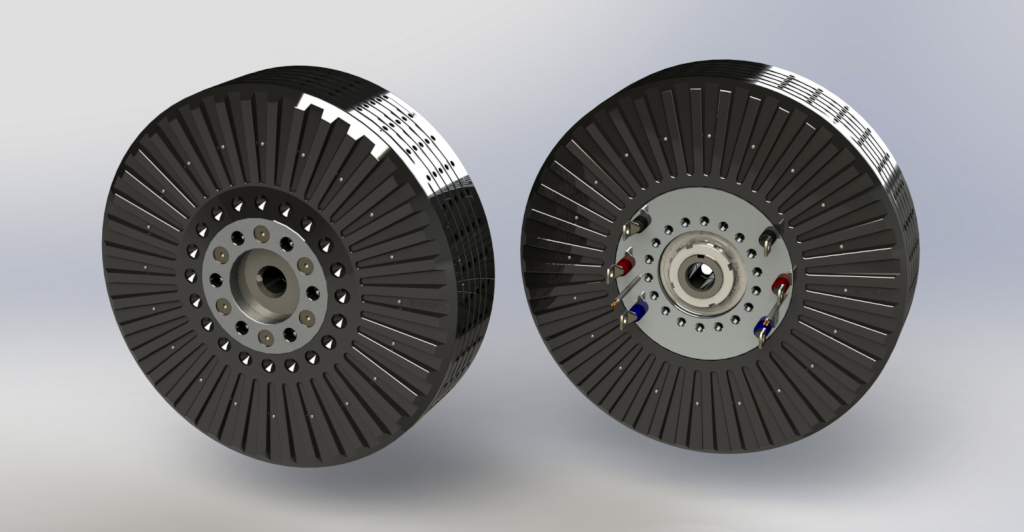

EMRAX 348
| Mechanical | |
| Type: | Axial flux motor / generator |
| Casing diameter: | 348 mm |
| Axial length: | 107 mm |
| Dry mass: | 43,1 kg (AC) / 43,5 kg (CC) / 43,9 kg (LC) |
| Stator cooling: | air (IP21) / combined (IP21) / liquid (IP66) |
| Mounting: | Front: 6x M12 threaded holes Back: 10x M8 threaded holes |
| Stacking: | Two motors can be stacked together to achieve doubled power / torque. For more info click here. |
| Electrical | |
| Maximal battery voltage: | 830 (HV) / 830 (MV) / 610 (LV)Vdc |
| Peak power (at 3250 RPM): |
340 kW |
| Continuous power*: | up to 140 kW |
| Peak torque: | 1100 Nm |
| Continuous torque*: | up to 425 Nm |
| Efficiency: | 92-98% |
*Subject to drive cycle, thermal conditions and controller capability.
EMRAX 348 Technical Data

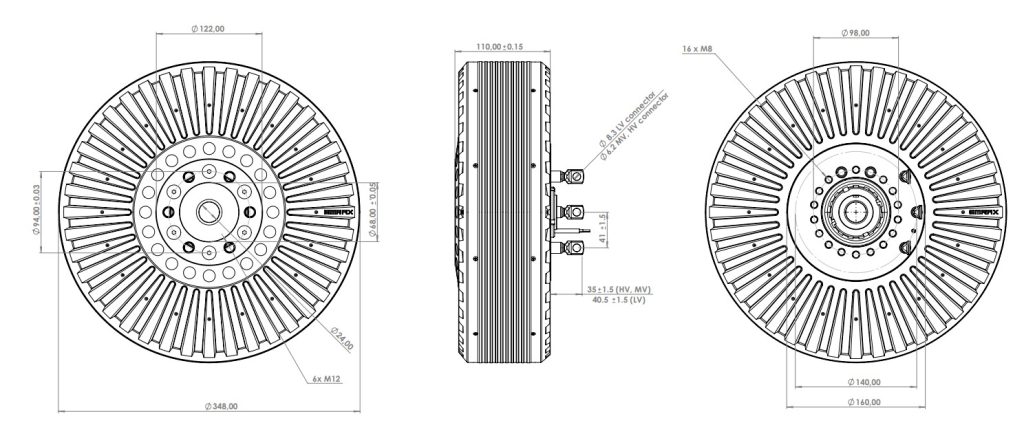

EMRAX 348 Dimensions
